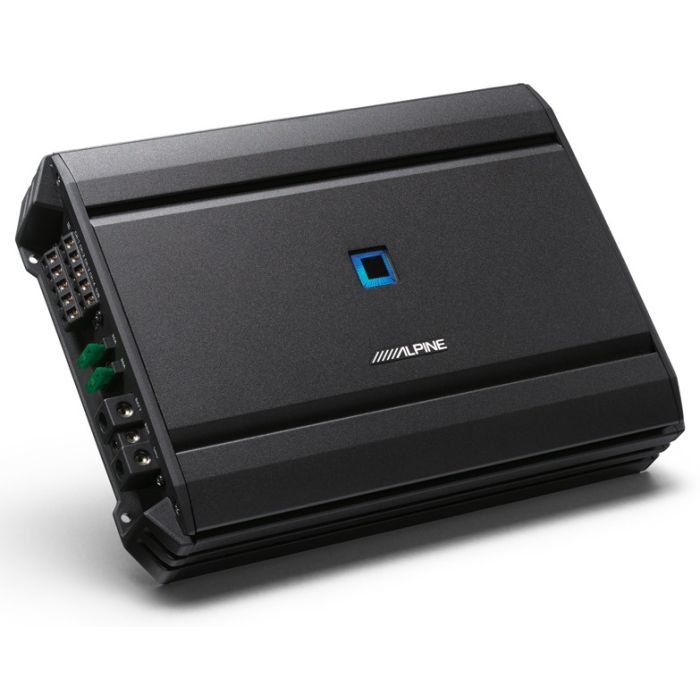

Alpine S-A55V

Amplificator Auto cu 5 Canale, putere Maxima 1100W Alpine introduce noile amplificatoare din seria S – o potrivire perfectă cu difuzoarele din seria S. Oferă o calitate excelentă a sunetului în gama lor de preț. Amplificatoarele din seria S sunt disponibile în configurație mono, pe 4 și 5 canale. Compact și puternic: noul amplificator digital permite o putere de ieșire ridicată, păstrând în același timp o amprentă mică. S-A60M măsoară doar 286 mm lățime x 204 mm lungime pentru o instalare ușoară în aproape orice vehicul. Caracteristici tehnice Install Terminal Layout: One side Small footprint for easy installation Screw terminals (for speaker and power cables) Heavy gauge power terminals (AWG 4) General Amplifier Type: Class-D (Digital) Channel Design: 5/4/3 Channel Thermal Management Control Top Mounted LED Power/Status Indicator Speaker Level Input with remote turn on Crossover: Adjustable Low-pass (LPF) / High-pass Filter (HPF) Gain Control: Adjustable Bass EQ (subwoofer channel) Bass Control: Remote Bass Control (RUX-KNOB2) Ready SPECIFICATIONS Max Power Output Ratings Total Max Power: 1100W RMS Power Ratings Per Channel into 2 Ohms, 14.4V (≤1%THD+N): 4 x 60W + 1 x 300W Per Channel into 4 Ohms, 14.4V (≤1%THD+N): 4 x 40W + 1 x 200W Bridged into 4 Ohms, 14.4V (≤1%THD+N): 2 x 120W Sound Tuning Crossover: Variable LPF, 50-400Hz (-12dB/oct ) Crossover: Variable HPF, 50-400Hz (-12dB/oct ) General Power Requirements: 14.4 V.DC (9 – 16 V allowable) Input Sensitivity (RCA Input): Hi: 0.5 – 10 V Lo: 0.2 – 4.0 V High Level Input with automatic power on Cable size: Power Cable AWG 4, SPK Cable AWG 12 Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-1/2/3/4: 10Hz – 30kHz Frequency Response (+0, -3dB: 1W into 4 ohms) for CH-5: 10Hz – 400Hz THD+N (@ 10W into 4 ohms): <0.03% THD+N (@ 50W into 4 ohms): <0.07% Damping Factor: Channel 1/2/3/4: >100, Channel 5: >750 Signal to Noise (@ 50 Watts into 4 Ohms): >98dB Weight: 2.9 kg Dimensions Heat Sink (WxHxD) mm: 286 x 58 x 204
